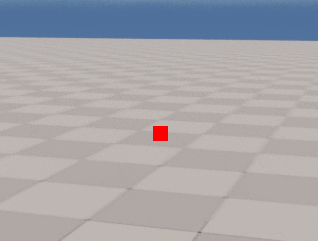

DrawDebugPoint(
GetWorld(), // World
FVector(0.0f, 0.0f, 100.0f), // Location
15.0f, // Point size
FColor::Red, // Color
false, // Persistent? Default = false
10.0f, // Life Time (Seconds) Default = -1.f
0 // Depth Priority Default = 0
);

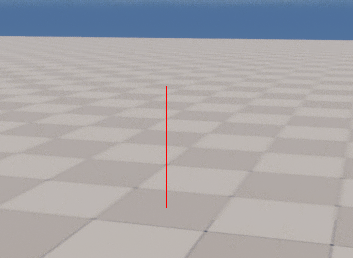

DrawDebugLine(
GetWorld(), // World
FVector(0.0f, 0.0f, 50.0f), // Start location
FVector(0.0f, 0.0f, 130.0f), // End location
FColor::Red, // Color
false, // Persistent? Default = false
10.0f, // Life Time (Seconds) Default = -1.f
0, // Depth Priority Default = 0
0.f // Line Thickness Default = 0.f
);

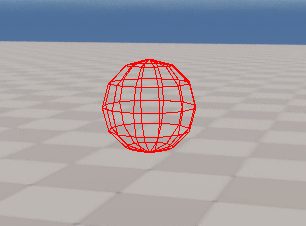

DrawDebugSphere(
GetWorld(), // World
FVector(0.0f, 0.0f, 120.0f), // Center location
30.0f, // Radius
12, // Segments
FColor::Red, // Color
false, // Persistant? Default = false
10.0f, // Life Time (Seconds) Default = -1.f
0, // DepthPriority Default = 0
0.f // Line Thickness Default = 0.f
);

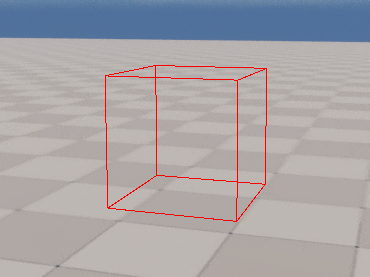

DrawDebugBox(
GetWorld(), // World
FVector(0.0f, 0.0f, 100.0f), // Center location
FVector(40.0f, 40.0f, 40.0f), // Extent (Half length)
FColor::Red, // Color
false, // Persistent? Default = false
10.0f, // Life Time (Seconds) Default = -1.f
0, // Depth Priority Default = 0
0.0f // Line Thickness Default = 0.f
);
// With Rotation
DrawDebugBox(
GetWorld(), // World
FVector(0.0f, 0.0f, 100.0f), // Center location
FVector(40.0f, 40.0f, 40.0f), // Extent (Half length)
FQuat(FRotator(0.0f, 45.0f, 0.0f)), // Rotation
FColor::Red, // Color
false, // Persistent? Default = false
10.0f, // Life Time (Seconds) Default = -1.f
0, // Depth Priority Default = 0
0.0f // Line Thickness Default = 0.f
);

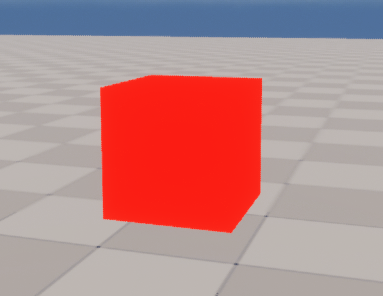

DrawDebugSolidBox(
GetWorld(), // World
FVector(0.0f, 0.0f, 100.0f), // Center location
FVector(30.0f, 30.0f, 30.0f), // Extent (Half length)
FColor::Red, // Color
false, // Persistent? Default = false
10.0f, // Life Time (Seconds) Default = -1.f
0 // Depth Priority Default = 0
);
// With Rotation
DrawDebugSolidBox(
GetWorld(), // World
FVector(0.0f, 0.0f, 100.0f), // Center location
FVector(30.0f, 30.0f, 30.0f), // Extent (Half length)
FQuat(FRotator(0.0f, 45.0f, 0.0f)), // Rotation
FColor::Red, // Color
false, // Persistent? Default = false
10.0f, // Life Time (Seconds) Default = -1.f
0 // Depth Priority Default = 0
);
// Using FBox & FTransform
DrawDebugSolidBox(
GetWorld(), // World
FBox(FVector(-30, -30, 70), FVector(30, 30, 130)), // Box (Min location, Max location)
FColor::Red, // Color
FTransform::Identity, // Transform Default = FTransform::Identity
false, // Persistent? Default = false
10.0f, // Life Time (Seconds) Default = -1.f
0 // Depth Priority Default = 0
);
DrawDebugCone(
GetWorld(), // World
FVector(0.0f, 0.0f, 150.0f), // Origin location
FVector(0.0f, 0.0f, -1.0f), // Direction
75.0f, // Length
FMath::DegreesToRadians(30.0f), // Angle width (Radians)
FMath::DegreesToRadians(30.0f), // Angle height (Radians)
12, // Segments
FColor::Red, // Color
false, // Persistent? Default = false
10.0f, // Life Time (Seconds) Default = -1.f
0, // Depth Priority Default = 0
0.0f // Line Thickness Default = 0.f
);

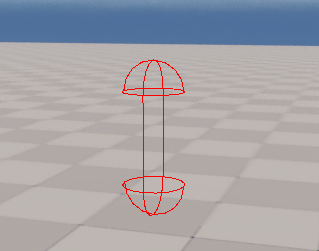

DrawDebugCapsule(
GetWorld(), // World
FVector(0.0f, 0.0f, 100.0f), // Center location
50.0f, // Half height
20.0f, // Radius
FQuat::Identity, // Rotation
FColor::Red, // Color
false, // Persistent? Default = false
10.0f, // Life Time (Seconds) Default = -1.f
0, // Depth Priority Default = 0
0.0f // Line Thickness Default = 0.f
);

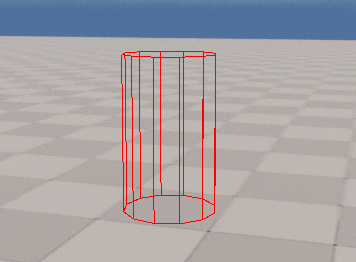

DrawDebugCylinder(
GetWorld(), // World
FVector(0.0f, 0.0f, 50.0f), // Start location
FVector(0.0f, 0.0f, 150.0f), // End location
30.0f, // Radius
12, // Segments
FColor::Red, // Color
false, // Persistent? Default = false
10.0f, // Life Time (Seconds) Default = -1.f
0, // Depth Priority Default = 0
0.0f // Line Thickness Default = 0.f
);
DrawDebugCrosshairs(
GetWorld(), // World
FVector(0.0f, 0.0f, 130.0f), // Location
FRotator::ZeroRotator, // Rotation
50.0f, // Scale
FColor::Red, // Color Default = FColor::White
false, // Persistent? Default = false
10.0f, // Life Time (Seconds) Default = -1.f
0 // Depth Priority Default = 0
);

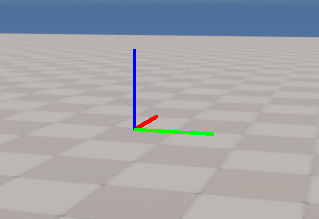

DrawDebugCoordinateSystem(
GetWorld(), // World
FVector(0.0f, 0.0f, 100.0f), // Location
FRotator(0.0f, 0.0f, 0.0f), // Rotation
50.0f, // Scale
false, // Persistent? Default = false
10.0f, // Life Time (Seconds) Default = -1.f
0, // Depth Priority Default = 0
2.0f // Line Thickness Default = 0.f
);

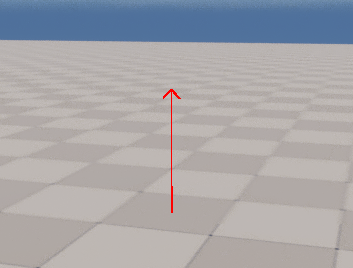

DrawDebugDirectionalArrow(
GetWorld(), // World
FVector(0.0f, 0.0f, 50.0f), // Start location
FVector(0.0f, 0.0f, 130.0f), // End location
30.0f, // Size
FColor::Red, // Color
false, // Persistent? Default = false
10.0f, // Life Time (Seconds) Default = -1.f
0, // Depth Priority Default = 0
1.0f // Line Thickness Default = 0.f
);

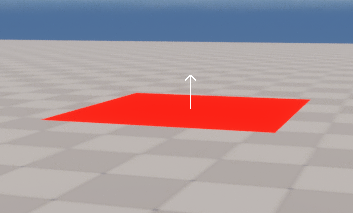

DrawDebugSolidPlane(
GetWorld(), // World
FPlane(FVector::UpVector, 120.0f), // Plane
FVector(0.0f, 0.0f, 120.0f), // Center Location
50.0f, // Size
FColor::Red, // Color
false, // Persistent? Default = false
10.0f, // Life Time (Seconds) Default = -1.f
0 // Depth Priority Default = 0
);
// Using Extent
DrawDebugSolidPlane(
GetWorld(), // World
FPlane(FVector::UpVector, 120.0f), // Plane
FVector(0.0f, 0.0f, 120.0f), // Center Location
FVector2D(100.0f, 50.0f), // Extent (Half length)
FColor::Red, // Color
false, // Persistent? Default = false
10.0f, // Life Time (Seconds) Default = -1.f
0 // Depth Priority Default = 0
);
